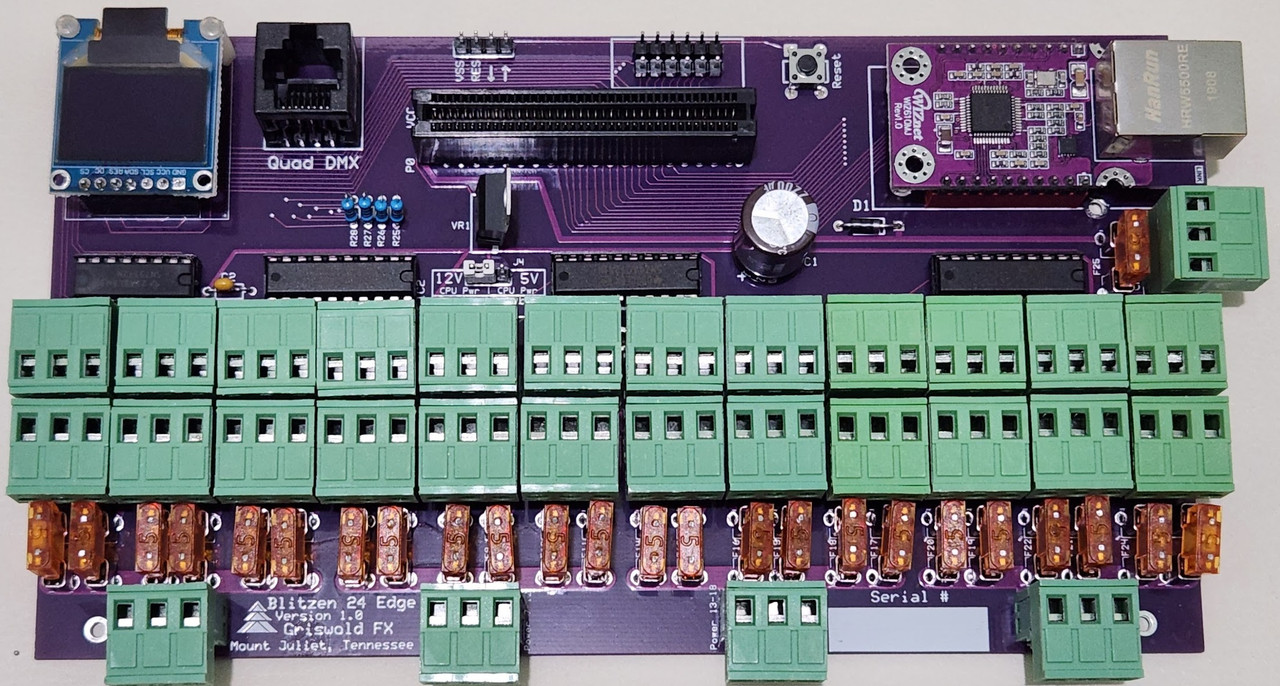

Blitzen 24 Edge

The Blitzen 24 Edge is a WS2811 pixel controller that utilizes the Parallax Propeller 2 at it's heart.

The Blitzen has 24 WS2811 outputs and is capable of running 800 pixels per port with a refresh rate of 40FPS or 1600 pixels per port with a framerate of 20FPS.  The Blitzen has four DMX outputs via an RJ45 port. Additionally there are 4 GPIO ports exposed on the 12 pin header. The 4 DMX TTL signals are exposed on this port as well.

The Blitzen 24 can be powered by 5 or 12 volts, jumper selectable.

All management of the Blitzen is via web browser. Firmware updates are provided via Internet connectivity.

The Blitzen 24 is a hobbyist dream, as you can modify the software to your specific needs, if need be. The controller software is completely opensource and licensed under the MIT license.

You will need to add a case, power supply. a Parallax P2 Edge, and a Micro-SD card.

Or choose the "Ready to Go" option. Your Blitzen 24 will be delivered with everything need, wired, and ready for you to add it to your display.

The Ready to Go options includes a 30AMP power supply, 24 wired xconnect outputs (not shown), A Parallax P2 Edge CPU, Micro-SD card with software preloaded, all mounted and wired in an RNI1500 enclosure.
